Tilt / Shift Photography

An introduction to 'tilt' lens photography

Responses17
Skip to Comments
Tim Parkin

Tim Parkin

Amateur Photographer who plays with big cameras and film when in between digital photographs.

Flickr, Facebook, Twitter



As people quest for more resolution and sharper pictures, they invariably encounter someone singing the praises of tilt-shift lenses. Most commonly used in close up product or architectural photography, these lenses allow the photographer to choose where the plane of sharp focus lies and also choose to correct or to manipulate perspective (to a limited extent). It is the ability to control where the plane of focus lies that we will cover in this article (we will come back to the perspective correction in the next issue).

The first thing that we need to understand is how focussing works in cameras. In order to do this, it is useful to look at the large format camera as these have the simplest lenses and are basically just a flexible box with a lens at one end and the ‘sensor’ at the other.

A lens of 100mm is focused on infinity when the distance between the ‘sensor’ and the lens is 100mm (see the diagram below).

Also, in order to focus closer than infinity, you need to make the distance between the sensor and the lens longer. (the actual equation is 1/sensor to lens + 1/lens to object = 1/focal length)

In summary, to focus closer we make the distance from lens to sensor bigger.

This is often masked in modern lenses because they use ‘internal’ focussing elements that move whilst keeping the front element stationary.

Normal Focus with Non-Tilt lens..

In the diagram below we can see what happens if we show two different paths of light. One focussed close and one focussed further away. The diagram also shows why the image on the sensor is upside down (all light paths pass through the lens).

Taking into account the light paths from different parts of the picture

The last image above shows both light paths shown using a single lens. We can imagine that the ‘target’ of both of these light paths as two little sensors. Or, if we look at the diagram below, we can see that the same would be true of a tilted sensor.

A tilted sensor focusses on a tilted plane

As you can see, each point on the sensor relates to an ‘in focus’ point on the landscape side of the camera. The plane of the sensor, the plane of the lens and the plane of sharp focus coincide at a single point (Hey! Mr Scheumpflug!).

So what happens when you focus? Well, inside the lens an element is moving backwards and forwards. If we focus closer, the lens element moves further away from the sensor. Take a look at what that means for the plane of sharp focus.

Focussing changes the angle of tilt (changing distance from sensor to lens == focussing)

So in summary, when you tilt a lens you can draw a line through the lens plane and the sensor plane and where they meet will be the axis around which the focal plane moves. If the lens is tilted more, that axis gets closer to the camera. When the lens is tilted less, the axis moves away from the camera.

When you focus the lens, you are effectively moving the lens (or lens nodal point) closer to or further away from the camera. This ends up rotating the sharp focus plane around the ‘hinge line’ (OK, it looks like a point on the diagram but it’s actually a line going into the paper).

The following diagram shows this

A typical DSLR tilt shift lens set up

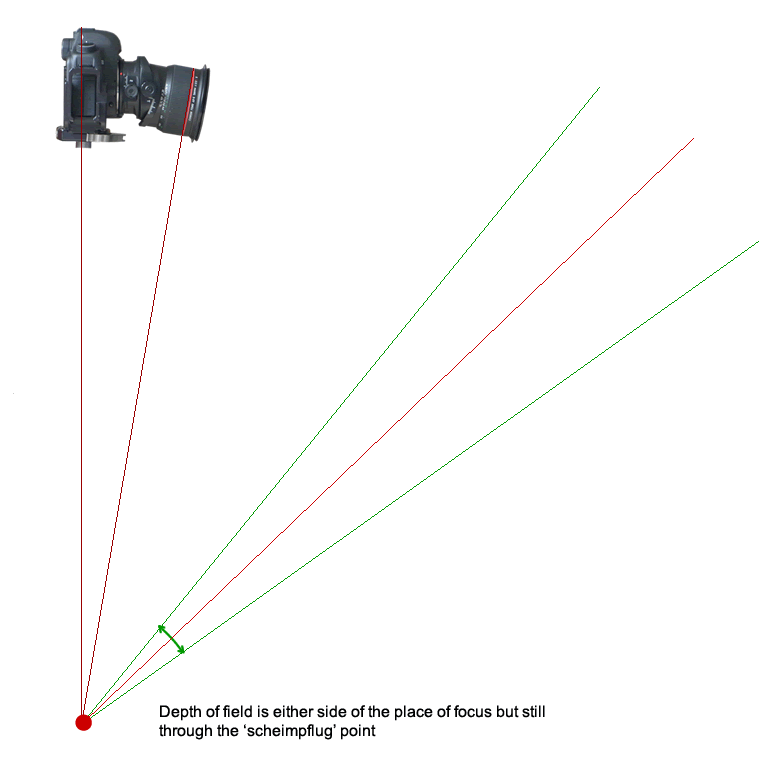

Now depth of field with a tilted focus plane causes some people some trouble to understand. However it’s actually fairly simple. Your depth of field gives acceptable sharpness from an area focussed closer to the camera to an area focussed further away from the camera. Hence, if we show the plane slightly closer to the camera and the plane slightly further away from the camera, you can see that the area of acceptable sharpness is actually wedge shaped.

Depth of field is the same as focussing closer/further

The last thing that is interesting here is that having gone through all of the maths (so you don’t have to) hyperfocal focus still applies along the lens axis (actually it isn’t that complicated, depth of field is normally calculated for a single line and then extrapolated for the whole perpendicular plane. In the tilted case we work out depth of field for a single line as per normal, but we are then constrained by all focal planes passing through the hinge point.

Normal depth of field calculations work on the lens axis

Practical Conclusions from the Above

A few things can be concluded from the information given above and that can be useful when working in the field.

1) You can work out an approximate tilt needed by looking at the plane of focus you want, working out where that plane of focus meets a line drawn through the sensor and then tilting the lens until it also points at the same line. This will usually be enough to get you pretty close for focussing.

2) Depth of field is a *lot* smaller nearer to the camera than farther away. Hence you don’t need to have the plane of focus directly hitting the horizon in a big view. If you do have it hitting the horizon, you are wasting half of your depth of field on the sky! Have a look at the diagram below

3) Your depth of field gets smaller the more you tilt. This isn’t easy to see without flipping between multiple pictures so we’ll take a detour.

I must admit to using my large format camera for most of my tilting and shifting and in the process of learning how to use it I heard someone espousing a concept called ‘microtilts’. The theory was that if you could apply a fractional amount of tilt, nearly everything would come into focus. I had a suspicion that this was a load of cobblers but looking at Harold Merklinger’s books on camera movements (very clever books but not recommended reading) it did seem to imply that this was the case (although I had a sneaky feeling that the maths was hitting the edges of the assumptions). Anyway, I wanted to see what was going on for myself and so I wrote a tilt shift simulator. That simulator allows a user to pick their lens, tilt, circle of confusion, etc, etc. and to play around and see what the depth of field and focal plane actually was.

Well - I’ve tweaked it slightly for DSLR users and here it is..

http://static.timparkin.co.uk/static/dslr-tilt-shift

It will work best Google Chrome, Safari or later versions of Firefox. If the sliders aren’t showing on the right hand side of the screen, zoom out a bit and things should snap into place.

Anyway, now we can take a look at this “depth of field getting smaller” thing. Click on the following link which is set up for hyperfocal focussing and slide the ‘lens tilt’ slider up to 1.6 degrees and back again. This is modelling the 24mm tilt shift lens at f/5.6 and using a circle of confusion that allows you to blow up prints to 10”x15” enlargement (i.e. a 10x enlargement which gives CoC = 0.2/10 = 0.02)

Click here to see what happens to the depth of field using hyperfocal technique. Play with the tilt and notice that some parts of the picture go further out of focus and some come into focus. Imagine you had a tree in the foreground of the picture.

The following table will work for most of the tilt shift lenses available and covers the 17mm, 24mm, 45mm and 90mm focal lengths. The idea here is to take a look down the table column of your lens and pick the distance (in meters) that is closest to the distance you want the focal plane to cross underneath your camera. (e.g. take a look at the distance from the camera to the red dots in the diagrams above). Then read off the number of degrees in the left hand column and apply it to your lens. You can then focus the lens in and out knowing that the plane of focus will always pass the same distance underneath your feet.

I'll give you an example. Let's say you set you camera up to take a photograph of the death valley floor (notice I chose a nice easy flat surface). You point your camera slightly downward to get your shot and then you draw a line from the back of the sensor down to the ground. It might look like the diagram below..

Measure the distance parallel to the camera back.

Measure the distance, let's say it is 0.7m, and look up the closest distance in the table for your lens, let's say 24mm. The table says that the tilt should be approx 2 degrees. Apply this amount of tilt and then focus the camera until the rest of the desert floor comes into focus.

You can see clearly from this diagram that longer lenses need more tilt..

deg/lens

17

24

45

90

0.12

0.17

0.33

0.66

0.14

0.20

0.37

0.74

0.16

0.23

0.43

0.86

0.20

0.28

0.50

1.00

0.25

0.34

0.65

1.30

0.32

0.46

0.85

1.70

0.48

0.70

1.30

2.60

1.5°

0.65

0.90

1.70

3.40

1.00

1.40

2.60

5.40

0.5°

2.00

2.80

5.40

10.80

Hopefully that is enough for this issue. For the next issue I'll be taking a look at some techniques to get best focal length and also looking at how using rise/fall/shift can help you rebalance your photographs.



  • This is really great Tim. I had to read through a few times to start to get the gist of it. I’ve had OK results with TSE lenses but it’s been through trial and error rather than having a good understanding of what’s going on. The interactive diagram could make a great iphone/ipad app…

  • Whew! You are a technician Tim. I’ll humbly admit that this was a bit over my head and attention span for technical reading :) Ignorant of the science and unable to prounounce “Scheimpflug”, Tilt-shift has nonetheless changed my photography dramatically over the past year. TS-E lenses coupled with live view and a loupe give me massively better control than I ever achieved before.

  • Hi Robert – just let me know which bits you struggled with and I’ll try my best to make them clearer..

    • alexands

      Really great article and simulator! I will second the opinion that it would make a great iphone app. I can do a pretty good job now of lining up the plane of focus with the ground, but I have a harder time optimizing tilt and focus point for scenes with objects of varying heights.

  • Pingback: Musings on: being aware of the ‘right kit’ | mikegreenimages()

  • zigg

    after weeks of research and a lot of reading in Merklinger´s books discovered your explanation…
    now I got it-all the relations Scheimpflug rule, hinge rule
    and focussing !!!

    • Thanks Zig!! Really appreciate the feedback…

  • Tim, can I use your tilt/shift-calculator in conjunction with a MF system? Do I have to calculate 35mm equivalent focal lenghts to make up for the larger sensor in order to make it work? Best regards, Chris

    • Hi Chris – it should work with medium format because the size of the sensor is irrelevant (apart from depth of field circle of confusion choice).

  • Good work here – I have the same conclusions ;)
    I’ve made some iPhone app recently after purchasing a TSE 24mm f3.5L II and first making an printing tables i first carried around.
    Just so you know :) I’ve used as well the camera tilt itself as an input, which is useful in landscape photography when the hinge line distance could otherwise be a bit difficult to estimate: the user only needs to estimate the height of the tripod – a typical case is indeed that the ground should be in focus i.e. the feet of the tripod are on the plane of focus itself. http://itunes.apple.com/us/app/tilt-calculator/id529611767?mt=8

  • Peter Bayliss

    Hi Tim
    I am very new to this having only got my 24mm TSE lens on 3 May. It would help if your app also had a height of camera setting. I find using live view tricky, but I have a 1 metre square piece of black material. When using this setup I find it draws attention. So far it has brought a lot of creative ideas, now to go out and give it a serious try. I tried a river leading to a bridge with a very large crane rising vertically. Shift was great.

  • This is an impressive and interesting article. I hope it is useful to TS lens users. However, I have found in my own work with the 17 and 24 TS lenses that adjusting the tilt for maximum depth of field is almost instinctive. A bit of fiddling with careful attention to the viewfinder gets me there. Rarely do I use a tripod with my TS lenses. The beauty of these lenses is to provide view camera adjustments while holding the camera in you hand.

    I hop your article does not intimidate people into thinking they must be mathematicians before using these lenses. It’s really not that hard.

    • The feedback and questions we’ve had suggest otherwise and the difficulty of finding the best tilt/aperture/focus depends on the picture and your position. For a standing position you can use the same tilt every time for ground to infinity shots, especially at smaller apertures. For perfect positioning at arbitrary heights and distances when you may also need a little swing, things can get very complicated. If you’ve got any suggestions on how to help people we’d love to hear though!

      • I don’t mean to pooh pooh your hard work. As I said it is very interesting and obviously useful in certain situations.

        It’s just that in the shooting situations which I encounter in my commercial work there is hardly any time for making complicated calculations involving measuring of angles. That is why I use the trial and error method. After all there is only one adjustment to make after framing the shot and that is the degree of tilt. If it’s too much, I back off, Too little and I increase. I know this sounds crude, but it does get me there. And you are right in that if we are talking about shooting the ground from eye level and getting everything in focus to infinity, the degree of tilt is small and easily repeatable.

        Not sure what you mean by “also need a little swing.” Unlike with a view camera only one adjustment is available to a TS lens at any one time. It’s tilt if you’re looking down and swing if you’re looking sideways. I find the swing adjustment very useful in the instance of sitting at one end of a dinner table and looking down a row of guests talking to each other. By “swinging” the lens (sideways tilt) you can get the entire row in focus. This is useful because stopping down in low light situations is not an option. You have to shoot at f3.5.

        • I understand where you’re coming from and if you want ‘better’ focus which is just good enough then the technique you suggest is fine. Just stop down a bit more and make sure it looks good in the viewfinder. However for landscape work with very high resolution sensors you need to be more accurate than this and very often trying to do it instinctively will just end up with you using live view and going backward and forward repeatedly (especially as many tilt lenses have field curvature – something people forget). Again, it’s not just getting it right in the viewfinder but at 100% in live view that matters if you’re trying to get the most of our modern sensors. A lot of the skill with tilting is that there generally isn’t one perfect solution and problems like the out of focus valley (and many similar) appear.

          • I have just reread your explanation and must agree that it’s the best I’ve ever encountered on the topic. I can certainly understand how the careful measurements involved would help someone with a tripod mounted camera and lots of time to look up the angles in your helpful chart.

            But as I’ve explained, this scenario does not describe any of the work I do with TS lenses. I am almost always hand holding the camera and have only a few seconds to make a decision about tilt angle. So frankly I am forced to accept what you term “better focus” rather than perfect focus. Having said that, I must add that “better focus” is most assuredly worth the price of admission. In pictures that need extended depth of field better makes a huge difference even if it is not spot on.

            However, I will most certainly keep in mind your explanation of the Scheimpflug rule and try to make the sensor plane meet the lens plane. Thanks for the very clever simulation you created. It’s quite helpful. I assume the dashed red line indicates depth of field.

            By the way, I have never used Live View as a focusing aid. Again, there’s simply no time to mess with such things.

            • Yep – it’s surprising more people don’t use tilt shift lenses this was. If you just consider it a good way of getting the shot with a reasonable shutter speed or saving you heading into diffraction with apertures it makes a lot of sense..
